recommended components
contributed by Ced Taylor
The following is a list of recommended components for servicing and modding Naim gear. All should provide equal or superior performance to stock Naim parts though there are alternatives wherever possible. Most parts have been tried but some are recommended, generally by Pink Fish forum contributors. |
Item | Pic | Component (click for datasheet) |
Comments | Supplier | order code | cost | |
Powersupplies | PSU reservoir caps | ||||||

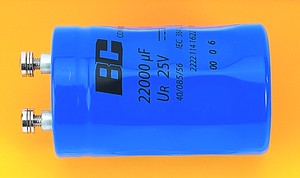

yes | BC Components 114 series | Very High grade with extremely low ESR and ESL. expensive and some report a slightly bright presentation. | Farnell CPC (cheaper) |
Various 10,000uf, 63V 306-381 |
Various £20 |
||
Kendeil | Possibly the best cap available. Les worstenholm prefers them slightly over the BC 114 series as they are smoother and they can be had cheaper. Rumours are that naim are now using them (rebadged with their name) since the demise of SLCE. |
Avondale AudioKit |
22000, 63V Various |
£18ish
|
|||
BC components 154 series | Also well regarded | Farnell CPC (cheaper) |
Various 10,000uf, 63V |
Various £xyxyx |
|||
BHC Aerovox ALS 30 | Popular in DIY generally. Very competent cap and not too expensive and easy to source. Good in preamp supplies. | Farnell | Various 10,000uf, 63V |
Various £xyxyx |
|||
BHC Aerovox ALC20A and ALC20T | Used by Naim for 10,000uf and lower applications. They are snap in and soldertag types that fit the slim line cases, Nap 140 and certain other items. | Farnell Arrow Electronics |
Various 10,000uf, 63V |
Various £? |
|||
Transformers | C
core transformers |
Apparently the best for preamp psus: very low noise, very low impedance. | avondale | n/k | n/k | ||
Toroidal transformers | Best for poweramps though can be used in all supplies. Avondale can supply super quiet super low impedance custom toroids for extrememly high performance. | avondale | n/k | n/k | |||
R cores | One off custom trannies available at very good prices. Great sound but hum somewhat. Delivery is reasonable and the guy speaks excellent english. | Hi fi tuning | Various | Various | |||
Voltage Regulators | ALW (Jung) supperregs (positive and neg versions at all voltages) | Astonishingly good. Aboslutely slaughers all monolithic regulators. Sound is apparently 'bigger and more sophisticated' than Avondale APX board though the presentation is different so not necesairily better. | ALW Audio | N/A | Approx: £32 as kit £62 ready made |
||
Avondale tracking regulators | apparently very good, better than single regulators or simple double regulators. Not tried personally but probably the only other form of regulator worth using. | Avondale audio | N/A | £20.00 | |||
Avondale APX board | Probably the only worthy competetor to the ALW superrgulators. Based, I believe, on a gyrator preregulator with lm317 output reg. Also has onboard reservoir caps and rectifiers. Can be paralleled for improved performance. | Avondale audio | N/A | ||||
LT 1033 | A highly regarded 7.5A monolithic regulator | Percy audio | N/K | N/K | |||
LT 1085 | A highly regarded 3A monolithic regulator | Percy audio | 412-284 | ||||
LT 1086 | Alternative to LM317 | Farnell | 412-119 | ||||
LT 317T | Extra high quality variant of LM317T from Linear Technology. |
Percy
audio |
|||||
LM317T | Bog standard. Naim use the TO220 in their lower quality power supplies and the TO3 package in their higher quality supplies. | Farnell | 412-132 | ||||
Bridge Rectifiers | IR MB series | Naim use these, eg 36MB40A, 35A, 400V. They are Bridges | Farnell | 371-932 | £4.52 | ||
MBR20200CT | 20A, 200V (dual 10A) Shottky diodes in TO220 package. Recommended by Les Worstenholm as better than normal silicon diodes, EAch didode can be used as a 10A half bridge by itself or use 4 to make a single 20A full bridge. | Farnell | 352-6240 | £2.95 | |||
MSR1560 | Highly regarded soft recovery diodes from OnSemi. | ||||||
Preamps | low power Transistors: | ||||||
ztx
384 npn / ztx 284 pnp |
Naim used these- now discontinued. Replace with BC550, BC560 | N/A | N/A | N/A | |||
Phillips
BC
550 (npn) / BC 560 (pnp) |
Phillips, apparently, produce the better types, gives flat earth sound | 316-3246 434-863 |
£0.08 £0.09 |
||||
2SC2547
(pnp) / 2SC2240 (npn) |
DNM use these, apparently good | ||||||
2SD786(
npn) / 2SB 737( pnp) |
apparently superb, better than the ztx parts but discontinued and very hard/expensive to source. | Cricklewood electronics | N/A | N/A | |||
2SC3329
(npn) / 2SA737 (pnp) |
replacements for the 2sd786 / 2sb737. Possibly not as good. | Cricklewood electronics | N/A | N/A | |||
10uf, 35V (tantalum) Input/output coupling caps: | Panasonic EF tantalum caps (10uf, 35V) | Naim use these (I think) though probably any tantalums are pretty ok | Digikey | P2065 ND | £1.00 | ||
BC components solid aluminium 128 series caps (10uf, 25V) | Les Worstenholm recommended, PRT and musical but slightly bright. Better than tantalums. | farnell | 577-443 | £0.67 | |||
yes | Rubycon Black gate N series bipolar caps (10uf, 50V) | Very sophisticated and open but not very musical. Very round earth. 2-3 week burn in. | Audio com | £3.00 | |||
Evox Rifa SMR 10uf/100V | Use for the buffer board OUTPUT cap only. The best- Superbly musical, dynamic, superb tight punchy bass and open. Film caps, though slightly dry sound. | Elfa | 65-553-04 | ~£7.00 | |||
Evox Rifa SMR 2.2uf/63V |
use
for the INPUT caps on both the buffer and gain boards only. |
Farnell | 389-1070 | £2.76 | |||
Evox Rifa SMR 3.3uf/63V | Use for the gain board output cap only. | Farnell | 389-1082 | £3.26 | |||
Multicap RTX 2uf, 100V | 36mm x 46mm huge size | ||||||
Multicap RTX 1uf, 100V | 20mm x 46mm | parts connection | |||||
Multicap RTX 1.5uf, 200V | 36mm x 46mm huge size | parts connection | |||||
Multicap RTX 1.5uf, 100V | 24mm diam x 44mm l | ||||||
yes | Elna Silmic series10uf, 35V | Fine; musical and colourful. Appealing mix of flat and round earth but not significantly better than tants. | Audio
Grade Audiocom |
£0.90 | |||
47uf, 40V powerrail decoupling caps (preamps) | Roederstein EBU Bipolar caps | Naim used to use these in their cheaper preamps | Buerklin | ||||
SLCE cocq series bipolar | Naim currently use these in their top of the range preamps | N/K | N/K | N/K | |||
25V 56uf SP Os-cons | Power rail decoupling only. Don't do 47uf but 56uf is excllent. | Farnell | 431-1190 | £2.04 | |||
Rubycon ZA series | Good and cheaper | Farnell | |||||
Rubycon Blackgate N series 47uf, 50V | N/K but see input | Audiocom | £7 | ||||
Panasonic NHG series | Les W recommends as the best all round electrolytic | Farnell | 319-8893 | 0.09 | |||
47uf, 40V feedback decoupling cap (preamp) | yes | Elna Silmic, 47uf, 35V | Superb, the best electrolytic available. | Audio
Grade Audiocom |
£0.75 -£ 1.50 | ||
Black gate N 47uf, 50V | Not tried but some good reports | £7 | |||||
Evox Rifa MMK, 47uf, 63V | Polyester cap, box, 16.5w, 32h, 41l, pitch 37.5. significantly better than the silmics though big. The best found so far and beat polypropylenes for some reason. | Elfa | 65-507-84 | 7.58 Euro | |||
Feedback resistors | Welwyn, RC55Y series | good in feeback loop, 0.1%, 0.25W, 15ppm. Les W recommended | Farnell | Various 10K 340-133 |
£0.90 | ||
Vishay S102 bulk foil | stupidly expensive. 0.01%, 0.6W, 2ppm. some people reckon worth using though reports are they sound 'soft.. |
Farnell Percy Audio |
Various various |
£10.20 ~£6 |
|||
Caddock TR020 ultra precison | apparently near vishay quality 15ppm, 0.33w, 1% but cheaper. A possible alternative. | Percy audio | n/a | ~£3 | |||
Vishay Dale RN60, 0.25W 1% | Reports have this as the best. Non-magnetic. | mouser | Various 10K 71-RN60D-F-10K |
£0.60 | |||
Resistors | BC components, SFR25 series, | used by naim, 5%, 0.4W | Farnell | Various 10K 332-811 |
£0.90/50 | ||
Vishay Dale RN60, 0.25W 1% | apparently better than the SFRs, non magnetic, copper leads | Mouser | Various 10K 71-RN60D-F-10K |
£0.60 | |||
Potentiometers | Alps blue velvet, 20K x 2 | used in naim preamps, good quality |
Hifi
collective |
£10-15 | |||
Alps black beauty | better version of the blue | Hifi collective | £30 | ||||
Panasonic | top pot |
HIFI
collective |
£40-70 | ||||
Nobel | top pot, possibly the best | HIFI collective | £30-60 | ||||
removable board pins and sockets | Tyco AMPMODU 141009-3 (pins) and AMP 141402-3 (sockets) | ||||||
Poweramps | output transistor collector decoupling caps | elna silmic, 470uf, 50V | May well be the best quality though I've not tested them | Schuro | 1.89Euro | ||
Rubycon ZL, 470uf, 50V | These are extremely low impedance | Farnell | 779-040 | £0.62 | |||
47uf/68uf feedback cap | |||||||
Elna Silmic,50uf | Drop in replacement | ||||||
56uf, 25v oscon SP | Drop in replacement | Farnell | |||||
68uf, 25V BC 128 solid aluminium | Drop in replacement | Farnell | |||||
47uf transistor decoupling cap | 68uf, 25V BC 128 solid aluminium | Drop in replacement | |||||
Elna Silmic, 47uf | Drop in replacement | ||||||
47uf oscon SP | Drop in replacement | ||||||
10uf, input coupling cap | various | See preamp coupling caps for advice but if using Evox SMRs which are great, 2.2uf is fine. | |||||
DC output protection | Vellman K4700 kit | If the poweramp has no output protection eg avondale NC220 boards or by disabling the SOAR protection on Naim boards then this kit can be use. Apparently can't be heard in circuit by Les W. |
Maplins CPC |
VE24B HK0074366 |
£16.99 £13 |
||
Transistors | NA001 | MJ15003 output transistors, BUV20 also good but expensive | Farnell | £3 | |||
Nait
One Trannies Try: BD711 - NPN & BD712 - PNP, both 12A @ 100V, 75W TO220 NPNs are numbered 003, PNPs numbered 004 |
|||||||
ZTX384s may be replaced by BC182 or BC546. Also ZTX651Q & 751Q | |||||||
NA005 | BD743's will replace the NA005s- recommended by Naim. | ||||||
ztx 653 npn | used to replace ztx 652 | N/A | N/A | N/A | |||
Xovers | Caps | Audyncap Plus polypropylene | Recommended as the best by several people, but expensive and huge. Don't like the sound of them in other applications but may work in xovers. | plus electronik | |||
Audyncap Q4 polypropylene | Supercheap polypropylenes of good audio standard | plus electronik | |||||
Inductors | Jensen | paper and beeswax copper foil air core inductors. Apparently The best. | plus electronik | various | |||
jantzen | air cored foil inductors- but apparently of good quality. | partsexpress.com | various | ||||
Mundorf | also apparently very good foil aircored inductors | plus electronik | various | ||||
Resistors | Caddock MV311 | 10W, non inductive. Superb apparently but rediculously expensive. | Rhopoint | various | £25? | ||
Intertechnick MOX | 10W metal oxide | plus electronik | various | ~£0.50 | |||
INTERCONNECTS | |||||||
interconnect wire- signal | apparently exceptional n cheap | maplins | XS38R | 0.49p/m | |||
Belden RU59 | possibly the mana cable? | ||||||
5 pin din, 180o | Preh twistlock, 5 pin, 180o locking din plugs | signal interconnects | |||||
Preh twistlock, 5 pin180o locking din sockets | |||||||
5 pin din, 240o | Preh twistlock, 5 pin, 240o locking din plugs | powersupply interconnects | Farnel | 308-900 | £1.71 | ||
Preh twistlock, 5 pin 240o locking din sockets | Farnel | 309-961 | £1.07 | ||||
4pin din | Preh twistlock, 4 pin 240o locking din plug | poweramp interconnect | Farnel | 437-219 | £1.69 | ||
Preh twistlock, 4 pin din socket | Farnel | 437-270 | £1.03 | ||||
8 pin neutik | 8 pole neutrik speakon plug (<=3mOhm contact resistance) | Easy to use for low impendance umbilical psu power cables | farnell | 724-567 | £6.81 | ||
8 pole neutrik speakon socket | use for multirail psu power cables | farnell | 724-579 | £4.75 | |||
4 pin neutric | 4 pole neutrik speakon plug (<=3mOhm contact resistance) | use for superlow impendance psu power cables | farnell | 4169426 | 30.2 | ||
4 pole neutrik speakon socket | use for superlow impendance psu power cables | farnell | 152-306 | £20.02 | |||
Phono plugs | Eichman Bullet plugs | apparently the best money can buy by a long way. Reduces cable differences alot. | Trichord research | £26/set 4 | |||
Burndys | FCI metalock bantam 19 way pin plug | Farnell | 105-321 | £6.14 | |||
FCI metalock bantam 19 way panel socket | Farnell | 105-330 | £3.21 | ||||
FCI metalock bantam AC basic hood | Farnell | 105-583 | £2.53 | ||||
25 solid machined pins | lowest impedance pins | Farnell | 150-623 | £5.65 | |||
25 solid machined sockets | Farnell | 150-626 | £6.70 | ||||
Interconnect- PSU power cables | 2.5mm 3 core flexible mains cable | comes in several colours | B&Q or hardware shops | approx £1/m | |||
CY control, 3 core(2.5mm) + copper shield | Raydex CY type | farnell | 385-3275 | £2.94 | |||
CY control, 7 core(1.5mm) + copper shield | Raydex CY type | farnell | 385-3380 | £2.05 | |||
MAINS | Mains cables | Audioquest type 4 speaker cable | Flatresponse | ||||
Belden 19364 | 3 x14awg core + foil shield, highly recommended | takefiveaudio | |||||
Belden 83803 | 3 x12awg core + foil shield & braid screen | takefiveaudio | |||||
IEC sockets | Shurter 4300 10A sockets | apparently the best schurter | CPC, takefiveaudio | ||||
Shurter 4781.0100 15A sockets | apparently 2nd best schurter | takefiveaudio, arrow | |||||
Wattgate 320, 10A, 250V sockets | generally considered teh best IEC available, but this model does not have gold plated pins and is consequently much cheaper. Welbourne do excellent price, most places far more expensive. Apparently the wattgate are made by Marinco. Can take up to 6mm core cable. | Welbourne labs | US $20 | ||||
marinco 320IEC | similar/same
part as the wattgate. also an excellent part. |
parts express | 110-400 | ~us$20 | |||
Mains plugs | MK Toughplugs | Generally considered an excellent standard plug |
B&Q or hardware shops Farnell |
n/a 107-757 |
approx £2.50 £2.87 |
||
Mains Haydra | Micromark 4 ways mains hydra | Star wired Mains PLUG which accepts up to 4 mains cables. | Maplins | VD 02C | £6.99 | ||
8 way earth blocks | screwfix | D1385-66 | £1.99 | ||||
4 way earth blocks | screwfix | D2386-66 | £1 | ||||
ENCLOSURES | Cases | Enclosure, hi fi/video, aluminium, removable top/bottom, black anodised, 442x88x254mm | Ok full size black anodised aluminium cases, bit Flimsy: flimsy top/bottom/side panels, more solid front/back panels but look good. | RS components | 226-139 | £62.02 | |
probably good for outboard phono stages | Lincoln binns | ||||||
wood side paneled, polished 5mm thick aluminium front, 3mm top bottom panels. very nice looking. The CH1 (US$140) is Naim full width case size-ish(445 x 330 x 83mm) and the CH3 (us$105) is a bit larger than half width (240 x 330 x 83mm) | IAG audio | various | approx £40- £70 depending on size. Delivery is apparently about us$20. | ||||
IEC inlets |
|||||||
Fuses | Must be slo-blo types | ||||||
LED | |||||||
Switches | Use 16A, 250V rocker switches for power. | ||||||
Knobs | Anodized Black and Aluminium knobs, very nice looking in 15, 22 and 28mm sizes, priced accordingly | Maplins | Alu:
YR64U, YR65V, YR66W Black: RK89W, RK90X, RK91Y |
£1.29-£1.99 depending on Size | |||
PCB MAKING EQUIPMENT | |||||||
ferric chloride pellets | 50g packets of senso developer for which makes up 1L of solution, Look under 'pcb chemicals' | Mega Electronics | (600-008) | £1.05 | |||
developer | 250g packets of ferric chloride crystals, Look under 'pcb chemicals' | Mega Electronics | (600-011) | £1.60 | |||
pcb boards | Single and double sided pcbs of various sizes, coated and uncoated, from 1oz to 2oz copper. Look under 'PCB laminates' to find the boards | Mega Electronics | Various | various | |||
Developing Trays | Trays for develping and etching the pcbs. Look under 'sundries and accessories' | Mega Electronics | 900-011 | £2.05 | |||
CD MODS | |||||||
Superclocks (for CD players) | Kwak Clock | V cheap, DIY, very good, requires, annoying, + & - 5V rails | Elso Kwak | N/A | approx £20 | ||
Trichord clock 4 | Avondale recommended as stunning in naim cdplayers. | Trichord Research | ~£200 | ||||
LC audio superclock | Ready made, expensive, comes in several variations | LC audio | various | ||||
Guido Tent's Xclock | very simple but apparently v good DIY. Only needs +5V. Apparently better than the kwak clock for naim gear. | Guido Tent | approx £20 | ||||
Audiocom superclock | Ready made, expensive, comes in several variations | Audiocom | various | ||||
Opamps (for CD players) | AD 8610 | exceptionally good, still hard to get hold of, smoother than ad825, very dynamic prt. However comes as SOIC package so requires adaptor. | Analogue
Devices Mouser Schuro |
£3-6.00 | |||
AD 825 | arguably second best, apparently different character to ad8610 (more bite) | farnell | 284-038 | £3.16 | |||
OP627 | Also a superb replacement but costly. Comes as a convienient DIL drop in replacement however. | farnell | ~£13 | ||||
Brown dog adaptors | allows the above opamps to slot into a DIL package footprint on a pcb | Brown Dog (cimaron) | £20 for 10 | ||||

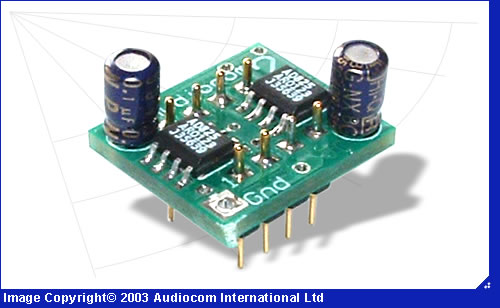

yes | AD 825 modules | Ready made modules of the above,expensive compared to DIY | LC
audio Audiocom |
A601030 | £14.50 | ||
USEFUL PARTS | |||||||
TO220 Insulation kits | TO220 sil pads | Sil pads+ bushes | Farnell | 522-636 | £0.70/10 | ||
TO220 screw fixing kis | screws to fit | Farnell | 520-160 | £1.10/10 | |||
